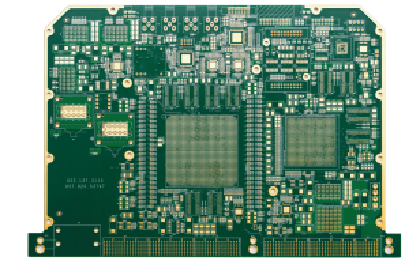

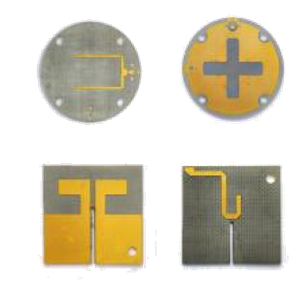

High-Frequency PCB Materials — Panasonic MEGTRON6 R-5775

Panasonic MEGTRON6 R-5775 is a high-speed, low-loss multilayer laminate designed for next-generation RF and high-frequency digital applications. With a dielectric constant (Dk) of approximately 3.5 and a dissipation factor (Df) of 0.004 at 1 GHz, R-5775 offers a balance of signal integrity and thermal reliability that makes it a preferred substrate for 5G base station transceivers, millimeter-wave radar, high-speed network switches, and advanced driver-assistance system (ADAS) processing boards. Superb Automation fabricates PCBs on R-5775 and comparable high-frequency laminates from customer Gerber and stackup files. Material is procured per the customer's specification — the laminate choice drives the fabrication process parameters, not the other way around.

Inverter PCB Assembly Buyer's Guide — EV Power Electronics

The traction inverter is the single most power-dense electronic assembly in an electric vehicle. It converts DC battery voltage to three-phase AC to drive the motor — switching hundreds of amps at hundreds of volts, tens of thousands of times per second. A single solder joint defect on a power stage PCB can cascade into field failure, warranty recall, or safety incident. This guide covers the six factors procurement teams should evaluate when selecting an inverter PCBA supplier: copper weight and current handling, substrate and thermal management, power semiconductor assembly, cleanliness and partial discharge, test and validation, and traceability.

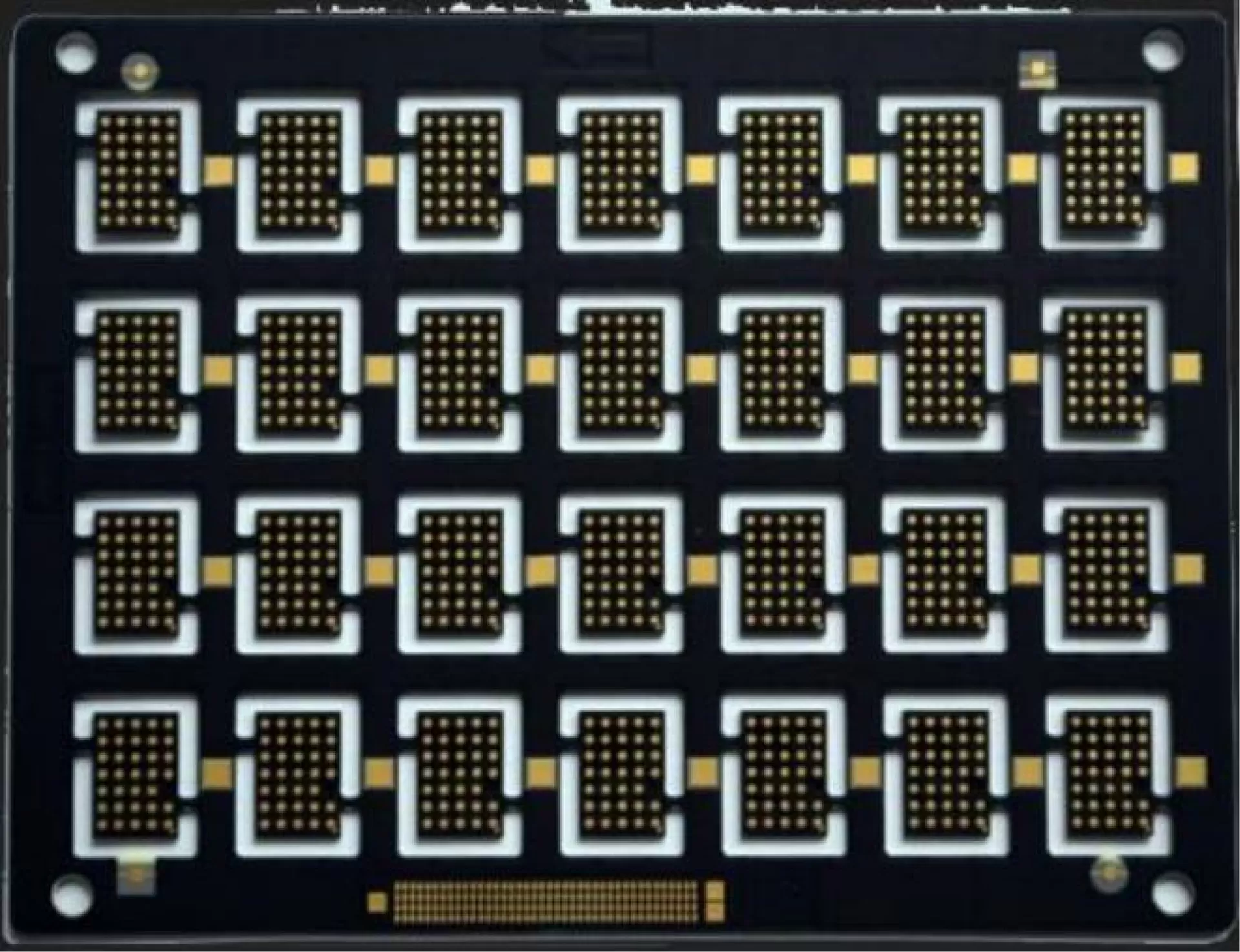

Advanced HDI PCB · SiP · mSAP — High-Density Interconnect Solutions

Advanced HDI (High-Density Interconnect) extends beyond standard multi-layer PCB fabrication by incorporating laser-drilled micro-vias, sequential lamination build-up layers, and fine-line trace/space geometries below 4/4 mil. Where a standard through-hole multilayer board connects every layer with mechanically drilled vias that span the entire board thickness, HDI uses blind and buried micro-vias that connect only the layers they need to — freeing routing space on other layers and enabling denser component placement. At Superb Automation, advanced HDI PCBs are fabricated to customer Gerber and stackup files. The fabrication process — micro-via laser drilling, sequential lamination registration, fine-line LDI imaging and etching — is tuned per build based on the customer's via stack definition and design rules.

Wearable and Portable Medical Device PCB Design

Surgical and Therapeutic Equipment PCB Design

Medical Imaging Equipment PCB Complete Analysis: CT, MRI to Ultrasound

Life Support and Patient Monitoring Equipment PCB Solutions

In-Vitro Diagnostics and Laboratory Equipment PCB Solutions
